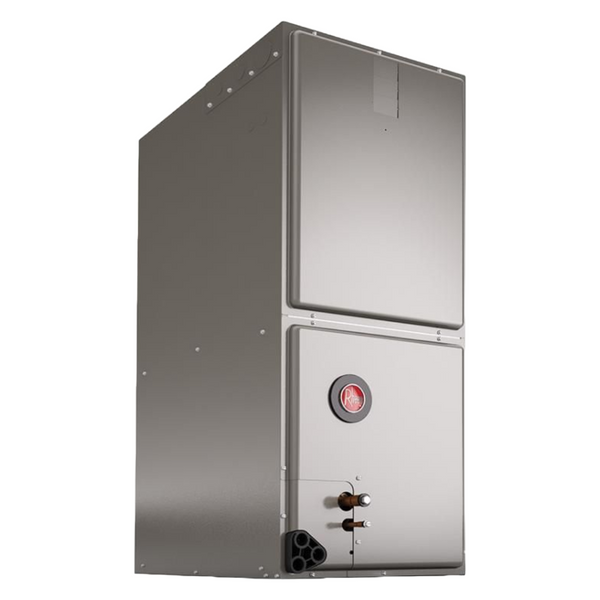

Rheem 3 Ton Air Handler 17" Wide W/ R-454B Sensor

RH2TY3617STANNJ - Endeavor® Line Air Handler

Key Features:

• Quiet Operation: Cabinet construction with 1.0 inch of foil-faced insulation ensures quieter sound characteristics.

• Aluminum Indoor Coil Design: Constructed with aluminum fins bonded to internally grooved aluminum tubing for enhanced corrosion resistance.

• Versatile 4-Way Convertible Compact Design: Allows for upflow, downflow, horizontal left, and horizontal right applications, even in compact spaces.

• Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility.

• Less than 2% Cabinet Air Leakage at 1-inch H2O: Tested in accordance with ASHRAE Standard 193 to ensure minimal air leakage.

• Designing for Sustainability with Low GWP: Utilizes R-454B refrigerant with a global warming potential (GWP) limit of 700, resulting in a 78% lower GWP than previous-generation refrigerants, aligning with 2025 Environmental Protection Agency (EPA) requirements.

• PlusOne® Refrigerant Detection System™: Integrated, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application, and system protection by automatically pausing outdoor unit operation if excess refrigerant is detected.

Specifications:

• Model: RH2TY3617STANNJ

• Type: Multipurpose Air Handler

• Voltage: 208 to 240 V

• Number of Phases: 1

• Frequency: 60 Hz

• Stages of Airflow: Two-Stage

• Motor Type: Constant Torque

• Refrigerant: R-454B

• Nominal Capacity: 36,000 Btu (10.55 kW)

• Efficiency: Standard

• Metering: TXV

• Controls: Non-communicating

• Coil Series: N Coil

• Air Flow - Low: 1,000 ft³/min (472 L/s)

• Air Flow - High: 1,200 ft³/min (566 L/s)

• Blower Motor: 1/2 hp (373 W)

• Blower Motor RPM: 300 to 1,100

• Blower Motor Speeds: 4

• Motor Amps: 2.4 A

• Minimum Circuit Ampacity: 3 A

• Maximum Overcurrent Protection: 15 A

• Weight: 96 lbs (44 kg)

• Shipping Weight: 110 lbs (50 kg)

• Dimensions (D x W x H): 21 11/16 in x 17 1/2 in x 42 1/2 in (551 mm x 445 mm x 1,080 mm)

• Supply Duct: 16 in (406 mm)

• Refrigerant Connections Sweat ID - Liquid: 3/8 in (9.53 mm)

• Refrigerant Connections Sweat ID - Vapor: 3/4 in (19.05 mm)

Limited Warranty:

• Conditional Parts: 10 Years (registration required)
