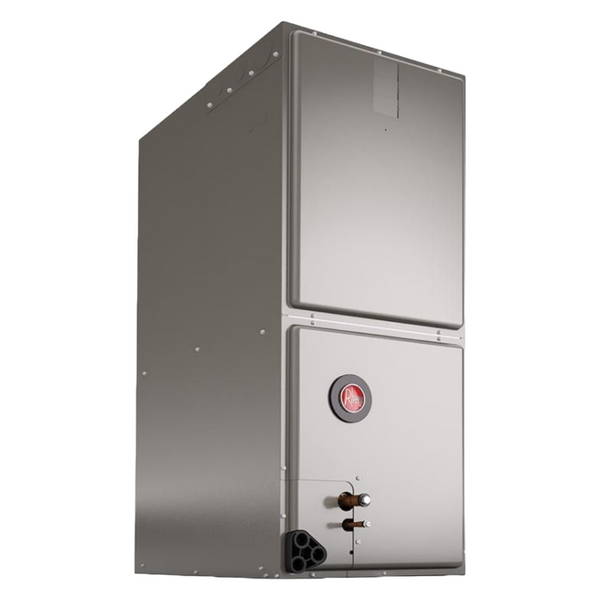

RHEEM RH2TY6024STANNJ - 5.0 Ton Constant Torque Air Handler


$2,500.00 $1,520.00
(You save $980.00)

brand:

SKU:
RH2TY6024STANNJ
Condition:
New
Shipping:
Free Shipping



RHEEM RH2TY6024STANNJ - 5.0 Ton Constant Torque Air Handler

RHEEM RH2TY6024STANNJ - 5.0 Ton Constant Torque Air Handler

High-efficiency air handler featuring Constant Torque ECM motor technology for superior comfort control and energy savings. Designed for residential applications with two-stage airflow capability and less than 2% cabinet air leakage.

Constant Torque Motor

Advanced ECM motor technology with 3/4 HP delivers consistent performance and energy efficiency with reduced operating costs.

Two-Stage Airflow

Variable airflow stages between 1200-1600 CFM optimize comfort and efficiency while reducing energy consumption.

4-Way Convertible Design

Flexible installation options with multi-position capability and aluminum indoor coil for enhanced durability.

Superior Cabinet Design

Less than 2% cabinet air leakage with 1.0 inch foil-faced insulation for maximum efficiency and performance.

Technical Specifications

Complete specifications for the RHEEM RH2TY6024STANNJ air handler, including performance ratings, electrical requirements, and physical dimensions.

Specification Value
Capacity60,000 BTU
Tonnage5.0 Ton
SeriesRH2TY
Motor TypeConstant Torque (ECM)
Motor HP3/4 HP
Motor Amps4.7 Amps
RPM Range300-1100
Airflow Stages2
Min Airflow1200 CFM
Max Airflow1600 CFM
Cabinet Width24.5"
Dimensions (W x H x D)24.5" x 55.5" x 23.5"
Unit Weight161 lbs
Shipping Weight178 lbs
Voltage208/240V/1Ph/60Hz
Min Circuit Ampacity6
Max Overcurrent Protection15
RefrigerantR-454B
Expansion DeviceTXV
Liquid Connection3/8"
Vapor Connection7/8"

Advanced Features & Performance

The RHEEM RH2TY6024STANNJ delivers exceptional performance with advanced Constant Torque motor technology and superior cabinet design.

Key Benefits:

  • Constant Torque Motor: ECM technology maintains consistent performance while reducing energy consumption and operating costs.
  • Two-Stage Operation: Variable airflow stages optimize comfort and energy efficiency with precise control.
  • 4-Way Convertible: Flexible installation options for upflow, downflow, left, or right horizontal configurations.
  • Aluminum Indoor Coil: Durable construction with enhanced heat transfer efficiency and corrosion resistance.
  • Superior Insulation: 1.0 inch foil-faced insulation reduces energy loss and prevents condensation.
  • Cabinet Air Leakage: Less than 2% cabinet air leakage ensures maximum system efficiency.
  • Refrigerant Detection: PlusOne Refrigerant Detection System for enhanced safety and reliability.

Professional Installation Required

This high-efficiency air handler requires professional installation by certified HVAC technicians for optimal performance and warranty compliance.
