Rheem 5.0 Ton 15.0 SEER2 Complete Heat Pump System
$9,995.00
$6,396.80
(You save $3,598.20)
brand: Rheem
- SKU:
- RP15AY60AJ2NA, RH2VY6024STACNJ, WRX10021
- Condition:
- New
- Shipping:
- Free Shipping

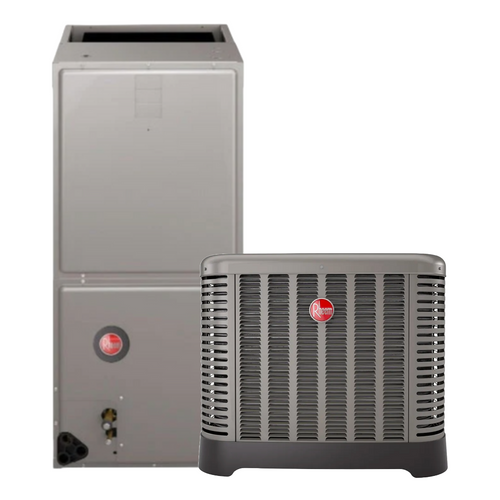

Rheem 5.0 Ton 15.0 SEER2 Complete Heat Pump System
Product Overview
Complete Rheem 5.0-ton heat pump system featuring 15.0 SEER2 cooling and 7.8 HSPF2 heating efficiency. This professionally matched system includes RP15AY60AJ2NA, RH2VY6024STACNJ, 10kW heat kit for optimal performance and reliability. All components are designed to work together seamlessly, providing year-round comfort with maximum energy savings.
Key Features
- 15.0 SEER2 / 7.8 HSPF2 efficiency ratings
- Factory-matched components for optimal performance
- Complete system warranty coverage
- ComfortBridge technology compatible
- Variable-speed air handler included
- Copeland scroll compressor
- All-aluminum evaporator coil
- Quiet operation design
HEAT PUMP SPECIFICATIONS
| Cooling Capacity | 60,000 BTU |
| SEER2 | 15.0 |
| HSPF2 | 7.8 |
| EER2 | 11.5 |
| Tonnage | 5.0 |
| Voltage | 208/230V |
| Phase | 1-Phase |
| Min Circuit Ampacity | 23.5 Amps |
| Max Overcurrent Protection | 35 Amps |
| Refrigerant Type | R-454B |
| Compressor Type | Scroll |
| Sound Level | 72 dB |
| Cabinet | Galvanized Steel |
| Dimensions | 35.5" W x 35.5" D x 34" H |
| Weight | 285 lbs |
AIR HANDLER SPECIFICATIONS
| Tonnage | 3.0 |
| Motor Type | Variable Speed ECM |
| Max CFM | 1,200 |
| Cabinet Width | 21 Inches |
| Dimensions | 21" W x 21" D x 58" H |
| Weight | 145 lbs |
| Voltage | 230V |
| Phase | 1-Phase |
| Breaker Size | 30 Amp |
| Refrigerant Type | R-454B |
| Coil Type | All-Aluminum |
| Metering Device | TXV |
HEAT KIT SPECIFICATIONS
| SKU | WRX10021 |
| kW | 10 |
| Amperage | 41.7 |
Ideal For
- Year-round heating and cooling
- Energy-efficient comfort solution
- New construction or replacement
- All climate zones
- Moderate to cold climates
Professional installation recommended. Contact our experts for system sizing and compatibility verification.
