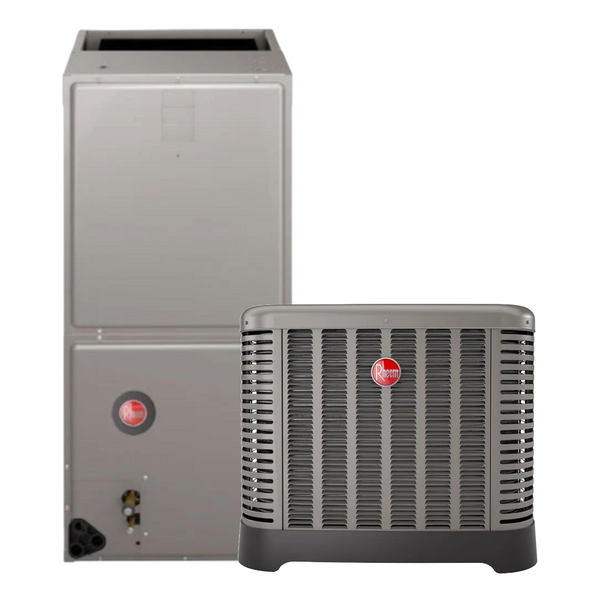

Rheem 5 Ton Heat Pump 2 Stage 14.3 SEER2 w/ Air Handler and 10KW Heat kit 24" R-454B

RP14AY60AJ1NA - Endeavor® Line Classic® Series Heat Pump

Key Features:

• Energy Efficiency: Achieves a SEER2 rating of 14.3, providing cost-effective heating and cooling throughout the year.

• Durable Construction: Built with high-quality materials to withstand various weather conditions, ensuring long-lasting performance.

• Quiet Operation: Designed to minimize noise, providing a comfortable indoor environment without disturbance.

• Eco-Friendly Refrigerant: Utilizes R-454B refrigerant, which has a lower global warming potential compared to traditional refrigerants.

Specifications:

• Model: RP14AY60AJ1NA

• Type: Residential Split Heat Pump

• Capacity: 5 Tons

• Refrigerant: R-454B

• SEER2 Rating: 14.3

• Sound Level: As low as 72 dB

• Compressor Type: Two-Stage

• Condenser Coil Type: 7mm

• Weight: 202 lbs

PlusOne® Features:

• Expanded Valve Space: Provides a minimum working area of 27 square inches for easier installation and service.

• Triple Service Access: Industry-leading 15-inch wide corner service access with two fastener removable corners and easily removable individual louver panels.

• Refrigerant Detection System™: Integrated, patented design providing system protection and homeowner peace of mind with low GWP refrigerant monitoring.

Dimensions:

• Depth: 33.75 inches

• Width: 33.75 inches

• Height: 35 inches

Limited Warranty:

• Conditional Parts: 10 Years (registration required)

RH2TY6024STANNJ - Endeavor® Line Air Handler

Key Features:

• Quiet Operation: Cabinet construction with 1.0 inch of foil-faced insulation ensures quieter sound characteristics.

• Aluminum Indoor Coil Design: Constructed with aluminum fins bonded to internally grooved aluminum tubing for enhanced corrosion resistance.

• Versatile 4-Way Convertible Compact Design: Allows for upflow, downflow, horizontal left, and horizontal right applications, even in compact spaces.

• Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility.

• Less than 2% Cabinet Air Leakage at 1-inch H₂O: Tested in accordance with ASHRAE Standard 193 to ensure minimal air leakage.

• Designing for Sustainability with Low GWP: Utilizes R-454B refrigerant with a global warming potential (GWP) limit of 700, reducing environmental impact.

• PlusOne® Refrigerant Detection System™: Integrated, patented design providing system protection and homeowner peace of mind with low GWP refrigerant monitoring.

Specifications:

• Model: RH2TY6024STANNJ

• Voltage: 208 to 240 V

• Number of Phases: 1

• Frequency: 60 Hz

• Stages of Airflow: Two-Stage

• Motor Type: Constant Torque

• Refrigerant: R-454B

• Nominal Capacity: 60,000 Btu (5 Tons)

• Metering: TXV

• Controls: Non-communicating

• Blower Motor: 1 hp

• Blower Motor RPM: 300 to 1,100

• Motor Amps: 8.4 A

• Minimum Circuit Ampacity: 11 A

• Maximum Overcurrent Protection: 15 A

• Weight: 150 lbs

• Shipping Weight: 170 lbs

• Dimensions (D x W x H): 21 11/16 in x 24 1/2 in x 58 1/2 in

• Supply Duct: 22 in

• Refrigerant Connections - Liquid: 3/8 in

• Refrigerant Connections - Vapor: 7/8 in

Limited Warranty:

• Conditional Parts: 10 Years (registration required)

WRX10021 - 10kW Heating Kit

Key Features:

• Efficient Heating Performance: Provides supplemental electric heat for HVAC systems, ensuring reliable warmth in colder conditions.

• Compact Design: Designed for seamless integration with compatible air handlers and heat pump systems.

• Easy Installation: Factory-approved kit for quick and secure installation.

• Durable Construction: Built with high-quality materials to ensure longevity and consistent performance.

• Optimized for Compatibility: Works with select air handlers and heat pump units to enhance heating capabilities.

WRX10021 - 10kW Heating Kit

Key Features:

• Efficient Heating Performance: Provides supplemental electric heat for HVAC systems, ensuring reliable warmth in colder conditions.

• Compact Design: Designed for seamless integration with compatible air handlers and heat pump systems.

• Easy Installation: Factory-approved kit for quick and secure installation.

• Durable Construction: Built with high-quality materials to ensure longevity and consistent performance.

• Optimized for Compatibility: Works with select air handlers and heat pump units to enhance heating capabilities.

• Built-in Overcurrent Protection: Ensures system safety by preventing overheating and electrical issues.

Specifications:

• Model: WRX10021

• Heating Capacity: 10 kW

• Voltage: 208/240V

• Phase: Single

• Number of Heating Elements: 2

• Amperage at 208V: 47.6A

• Amperage at 240V: 41.7A

• Breaker Size: 50A

• Compatibility: Designed for use with select Rheem air handlers

• Construction: Heavy-duty components for enhanced reliability

• Installation: Factory-approved kit for secure and efficient integration

Limited Warranty:

• Conditional Parts Warranty: 10 Years (registration required)

• General Parts Warranty: 5 Years (if not registered)
