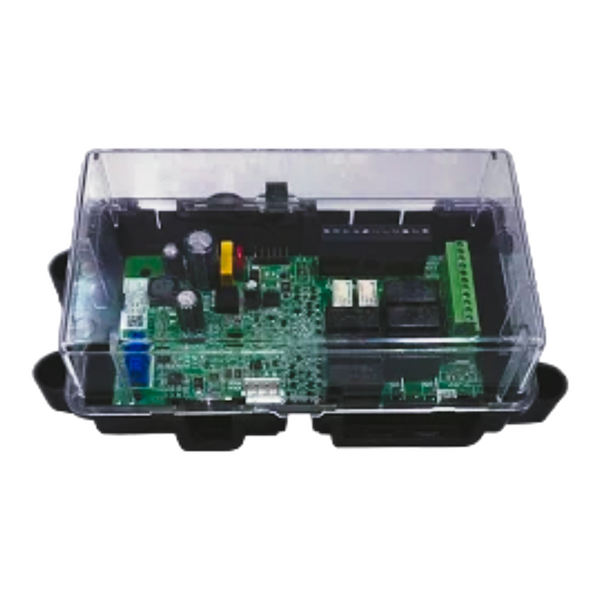

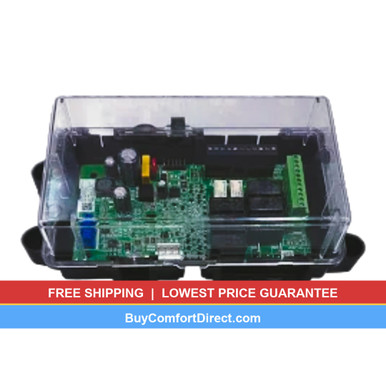

Solace R-32 Furnace Integration Kit - S-0230K00044
brand: Solace
- SKU:
- S-0230K00044
- Shipping:
- Calculated at Checkout
Solace R-32 Furnace Integration Kit - S-0230K00044
The Solace R-32 Furnace Integration Kit enables safe integration of existing R-410A furnaces and modular blowers with next-generation R-32 refrigerant systems. This essential kit provides the required leak detection mitigation protocol when upgrading to R-32 outdoor units and indoor coils while retaining your current furnace or modular blower.
Key Features
- R-32 Leak Mitigation: Provides required safety protocol when refrigerant leak is detected in R-32 coil systems equipped with leak detection sensors
- Retrofit Ready: Designed specifically for the HVAC replacement market—upgrade to R-32 without replacing a functional furnace or modular blower
- Universal Compatibility: Works with all Solace furnaces engineered for R-410A systems and modular blowers with R-410A or R-32 systems
- Third-Party Coil Support: Compatible with third-party R-32 coils equipped with R-32 leak detection sensors
- Utilizes Existing Controls: Leverages the existing furnace or modular blower control boards to achieve R-32 leak mitigation functionality
- Eco-Friendly Upgrade Path: Supports transition to R-32 refrigerant, which has a lower global warming potential than R-410A
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-0230K00044 |
| Product Type | R-32 Furnace Integration Kit |
| Refrigerant Compatibility | R-32 |
| Product Height | 3 in. |
| Product Width | 7 in. |
| Product Depth | 8 in. |
| Weight | 2 lbs. |
Application Requirements
System Configuration: This kit supports systems containing either (1) a furnace, indoor coil, and outdoor air conditioner or heat pump, or (2) a modular blower, indoor coil, and outdoor air conditioner or heat pump.
Upgrade Requirements: When replacing either the indoor coil or outdoor unit, both components must be upgraded to R-32 models. If the existing furnace or modular blower is still operational, it does not need to be replaced.
Important: After installation, verify the R-32 leak mitigation function as detailed in the installation instructions to ensure proper system operation.
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures proper leak mitigation verification, safety compliance, and full warranty protection.
R-32 Ready for the Future
Supports the industry transition to R-32 refrigerant with lower global warming potential, meeting evolving environmental standards while maintaining system performance
