Goodman 4 Ton Horizontal 80% Gas System 14.3 SEER2 21" Wide R-32

Goodman 80% Horizontal Gas System

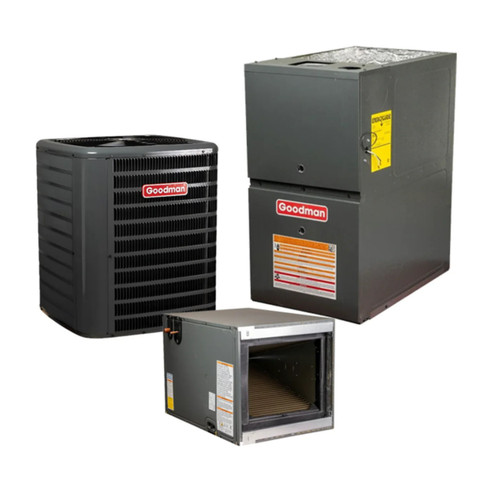

This comprehensive HVAC system combines the efficiency of the GLXS air conditioner, the GM9S indoor air handler, and the CHPTA evaporator coil for reliable cooling in warmer weather.

Key Features:

• Efficient Performance: SEER2 rating of 14.3 for energy savings.
• Durable Construction: Heavy-gauge steel cabinet and steel louver coil guard.
• Weather Resistant: Meets 2023 Florida Building Code requirements.
• Easy Maintenance: Removable grille-style top design for outdoor unit and tool-less filter access for indoor unit.
• All-Aluminum Evaporator Coil: Optimized for R-32 refrigerant.
• Quiet Operation: Direct-drive, resilient-mount, 9-speed ECM motor in the indoor unit.

Specifications:

Outdoor Unit:

• Refrigerant Type: R-32
• SEER 2: 13.8
• Unit Height: 35.75 in
• Unit Width: 35.5 in
• Cooling Capacity Nominal: 48000 Btu/H
• Max Overcurrent Protection: 40 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Unit Weight: 210.5875 lb
• Unit Depth: 35.5 in

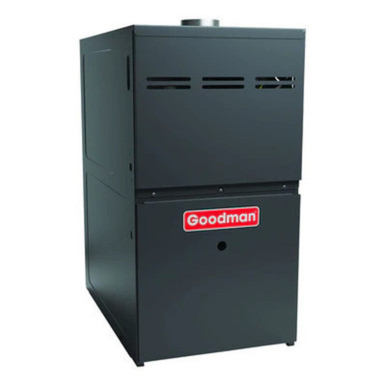

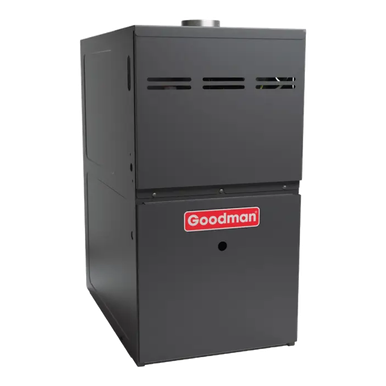

Indoor Unit:

• Unit Height: 33.375 in
• Unit Width: 21 in
• AFUE: 80 %
• Cooling Capacity Nominal: 48000 Btu/H
• Installation Configuration: Upflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 132 lb
• Unit Depth: 28 in

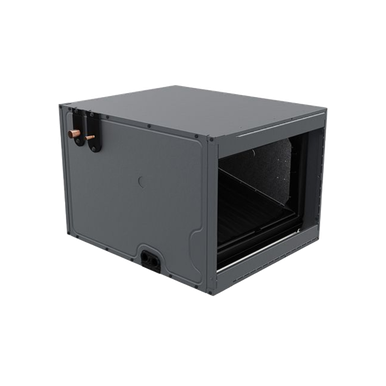

Evaporator Coil:

• Refrigerant Type: R-32
• Unit Height: 21 in
• Unit Width: 30 in
• Cased/Uncased: Cased
• Coil Application: Horizontal A
• Unit Depth: 21 in
