HAIER 5 Ton 18.0 SEER2 R-454B 80% AFUE 90K BTU Dual Fuel System (Upflow Coil)
brand: Haier
- SKU:
- 1U60T3PE1HE,NF80U090S5CR,NCUC60CT5S
- Condition:
- New
- Shipping:
- Free Shipping
HAIER 5 Ton 18.0 SEER2 R-454B 80% AFUE 90K BTU Dual Fuel System (Upflow Coil)

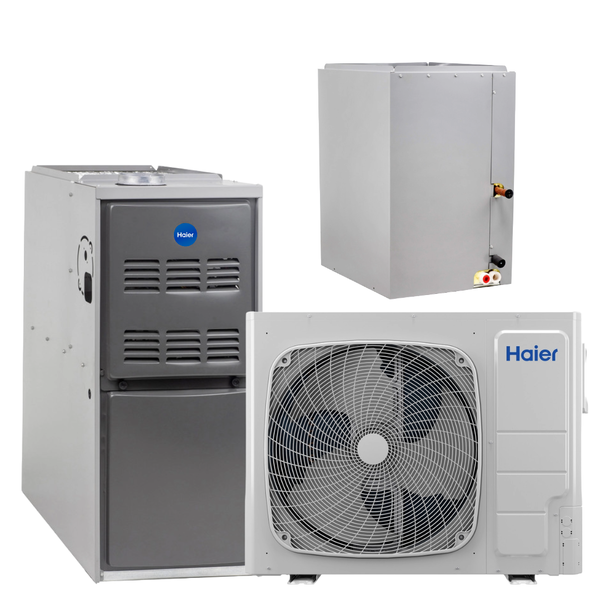

This complete furnace and coil system pairs a 5-ton outdoor condenser unit with an 80% AFUE gas furnace and matching evaporator coil. Engineered for reliable whole-home comfort, the system delivers up to 18 SEER2 cooling efficiency using R-454B refrigerant. The 1U60T3PE1HE condenser, NF80U090S5CR furnace, and NCUC60CT5S coil are designed to work together, providing an integrated heating and cooling solution for residential applications.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U60T3PE1HE |
| Product Type | Heat Pump |
| Tonnage | 5 Ton |
| Cooling Capacity (BTU/h) | 60000 BTU/h |
| Heating Capacity (BTU/h) | 60000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 37 A |
| Max Overcurrent Protection | 60 A |
| Factory Charge (oz) | 125 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Sound Level (dBA) | 78 dBA |
| Dimensions (H×W×D) | 56.312" x 41.625" x 19.875" |
| Shipping Weight | 306.4 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NF80U090S5CR |
| Product Type | 80% AFUE Gas Furnace |
| AFUE Rating | 80% |
| Input BTU/h | 88,000 BTU |
| Output BTU/h | 72,000 BTU |
| Heating Stages | 1 |
| Blower Motor Type | Multi-Speed ECM (Constant Torque) (1/2 HP) |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2" FPT |
| Voltage/Phase/Frequency | 120V/1-Ph/60Hz |
| Min Circuit Ampacity | 10.9 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 33.0" x 21.0" x 28.5" |
| Shipping Weight | 152.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NCUC60CT5S |
| Product Type | Upflow Evaporator Coil |
| Tonnage | 5 Ton |
| Nominal Cooling (BTU/h) | 60000 BTU/h |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Coil Configuration | Cased Upflow |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Drain Connection Size | (2) 3/4" FPT |
| Dimensions (W×D×H) | 21.0" x 22.0" x 32.25" |
| Shipping Weight | 69.35 lbs |
Features
- 5-ton complete system with condenser, furnace, and coil
- 18 SEER2 energy efficiency rating for cooling performance
- 80% AFUE gas furnace for reliable home heating
- R-454B refrigerant for environmentally responsible operation
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
