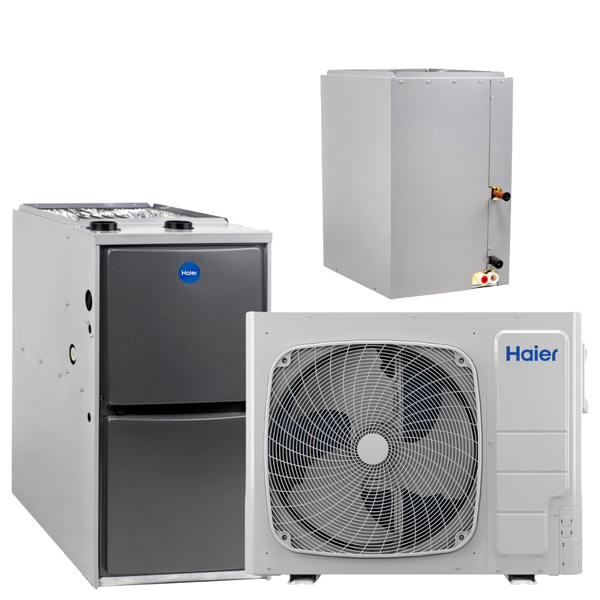

HAIER 5 Ton 18.0 SEER2 R-454B 96% AFUE 90K BTU Dual Fuel System (Upflow Coil)
brand: Haier
- SKU:
- 1U60T3PE1HE,NF96U090S4CR,NCUC48CT5S
- Condition:
- New
- Shipping:
- Free Shipping
HAIER 5 Ton 18.0 SEER2 R-454B 96% AFUE 90K BTU Dual Fuel System (Upflow Coil)
This complete furnace and coil system pairs a 5-ton condenser with a 96% AFUE gas furnace and matching evaporator coil, delivering efficient year-round climate control using R-454B refrigerant. The outdoor unit achieves up to 17.0 SEER2 for cooling performance, while the furnace provides reliable heating at 96% efficiency. Designed to work together, these components offer a balanced solution for whole-home comfort and energy savings.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U60T3PE1HE |
| Product Type | Heat Pump |
| Tonnage | 5 Ton |
| Cooling Capacity (BTU/h) | 60000 BTU/h |
| Heating Capacity (BTU/h) | 60000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 37 A |
| Max Overcurrent Protection | 60 A |
| Factory Charge (oz) | 125 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Sound Level (dBA) | 78 dBA |
| Dimensions (H×W×D) | 56.312" x 41.625" x 19.875" |
| Shipping Weight | 306.4 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NF96U090S4CR |
| Product Type | 96% AFUE Gas Furnace |
| AFUE Rating | 96% |
| Input BTU/h | 88,000 BTU |
| Output BTU/h | 85,600 BTU |
| Heating Stages | 1 |
| Blower Motor Type | Multi-Speed ECM (Constant Torque) (1/2 HP) |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2" FPT |
| Voltage/Phase/Frequency | 120V/1-Ph/60Hz |
| Min Circuit Ampacity | 8.4 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 33.0" x 21.0" x 28.5" |
| Shipping Weight | 152.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NCUC48CT5S |
| Product Type | Upflow Evaporator Coil |
| Tonnage | 4 Ton |
| Nominal Cooling (BTU/h) | 48000 BTU/h |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Coil Configuration | Cased Upflow |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Drain Connection Size | (2) 3/4" FPT |
| Dimensions (W×D×H) | 21.0" x 21.0" x 28.25" |
| Shipping Weight | 52.25 lbs |
Features
- 5-ton outdoor condenser unit with 17.0 SEER2 efficiency rating
- 96% AFUE high-efficiency gas furnace for optimal heating performance
- R-454B refrigerant compatible across all system components
- Matched furnace and coil system engineered for reliable operation
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
