Rheem 15kW Electric Heat Kit
$580.00
$371.20
(You save $208.80)
brand: Rheem
- SKU:
- WRX1502B1
- Condition:
- New
- Shipping:
- Free Shipping

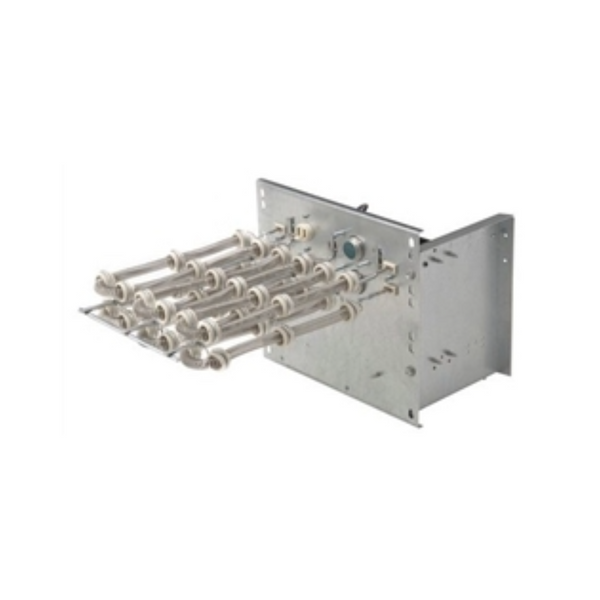

Rheem 15kW Electric Heat Kit
Complete Heat Kit Includes
- Electric Heat Kit - 15kW (Model: WRX1502B1)
- Built-in Overcurrent Protection - Integrated safety features with breaker
- Nickel Chromium Heat Elements - Durable, long-lasting construction
System Features
- Maximum Heating Power: 15kW capacity for powerful supplemental heat
- Factory-Approved Design: Engineered specifically for Rheem air handlers
- Easy Installation: Plug-in wiring harness for quick installation
- Enhanced Safety: Breakered unit with overcurrent protection
- ETL Listed: Meets safety and performance standards
- Professional Grade: Designed for commercial and large residential use
Heat Kit Specifications
WRX1502B1 Heat Kit
| SKU | WRX1502B1 |
|---|---|
| Manufacturer | Rheem |
| Heating Capacity | 15 kW (51,180 BTU/h) |
| Electrical Phase | Single Phase |
| Voltage | 208-240V |
| Frequency | 60 Hz |
| Amperage at 208V | 71.4A |
| Amperage at 240V | 62.5A |
| Breaker Size | 80A |
| Heating Elements | 3 Elements |
| Element Material | Nickel Chromium |
| Compatibility | Rheem/Ruud Air Handlers |
| Application | Commercial/Large Residential |
Advanced Safety Features
- Built-in Circuit Breaker: Integrated overcurrent protection with breakered design
- Fuse Link Secondary High-Temperature Limit: Additional safety protection
- Factory-Installed Disconnect: Available on specific models for enhanced safety
- ETL Listed: Meets rigorous safety and performance standards
- Sequencers for Temperature Control: Optimized staging for heating performance
- Multiple Branch Circuit Capability: Flexible electrical installation options
Ideal For
- Large Residential Heat Pump Systems: Perfect for 5+ ton heat pumps
- Commercial Applications: Light commercial HVAC systems
- Emergency Heat Backup: High-capacity backup heating
- Large Spaces: Ideal for spaces over 3,000 sq ft
Experience maximum supplemental heating power with the Rheem WRX1502B1 15kW Electric Heat Kit. This commercial-grade, breakered heat kit provides the highest capacity electric heating for Rheem and Ruud air handler systems, featuring triple nickel chromium elements, enhanced safety protection with integrated breaker, and plug-in wiring for easy installation. Perfect for large residential and commercial applications requiring maximum backup or supplemental heating capacity.
